ARES XL

Conquer uneven terrain and cultivate superior seedbeds. Hard, compacted ground makes it difficult for seeds to germinate and roots to penetrate. The Ares XL makes quick work of stubborn ground with its adjustable disc angles and comes with a convenient foldable frame for easy transportation and stowage.

Working Width

3.0 M - 12.0 M

Chassis Construction

Folding Frame

Required HP

110 - 480 HP

Working Depth

Up to 18 cm

ARES XL – Speed Disc – Unia

Heavy-duty Speed Disc that will transform hard, uncultivated ground to a well prepared seedbed in a single pass

ARES XL Working Width/ HP
3.0m / 110-130 hp
3.5m / 120-140 hp
4.0m / 120-150 hp
6.0m folding / 170-210hp

Seedbed Preparation

Reliable and Robust Design

Highly Versatile and Adaptable

Specifications

Here are some technical details of all the available variants/models in this specific product.

ARES XL 3 3.5 4 H 6
Weight with pipe roller (kg) 1530 1875 2085 3630
Power demand (HP) 110÷130 120÷140 120÷150 170÷210
No. of discs (pc.) 24 28 32 48
Spacing between rows of discs (cm) 80 80 80 80

Ares XL Speed Disc - Unia

Many Australian farmers struggle to efficiently till soil for optimal seedbed preparation. The Ares XL excels in transforming compacted soil into a loose, even seedbed ready for sowing.

Ares XL Speed Disc Overview

Transform your field with the Unia Ares XL Speed Disc, a robust solution from FarmTech Machinery, designed to convert hard, uncultivated land into a well-prepared seedbed in just one pass. Tailored for Australian farmers facing challenges in efficiently tilling and cultivating their soil, the Ares XL stands out as a high-performance, multi-disc cultivator.

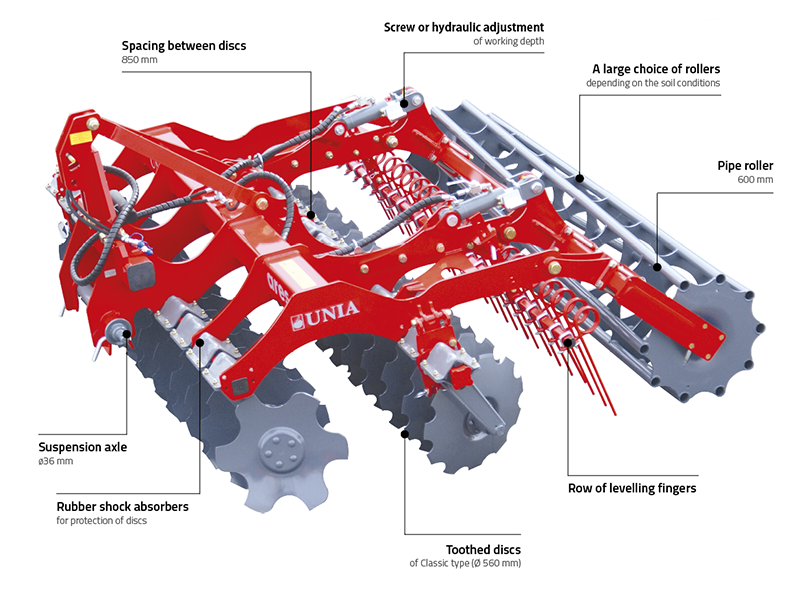

Design and Standard Features

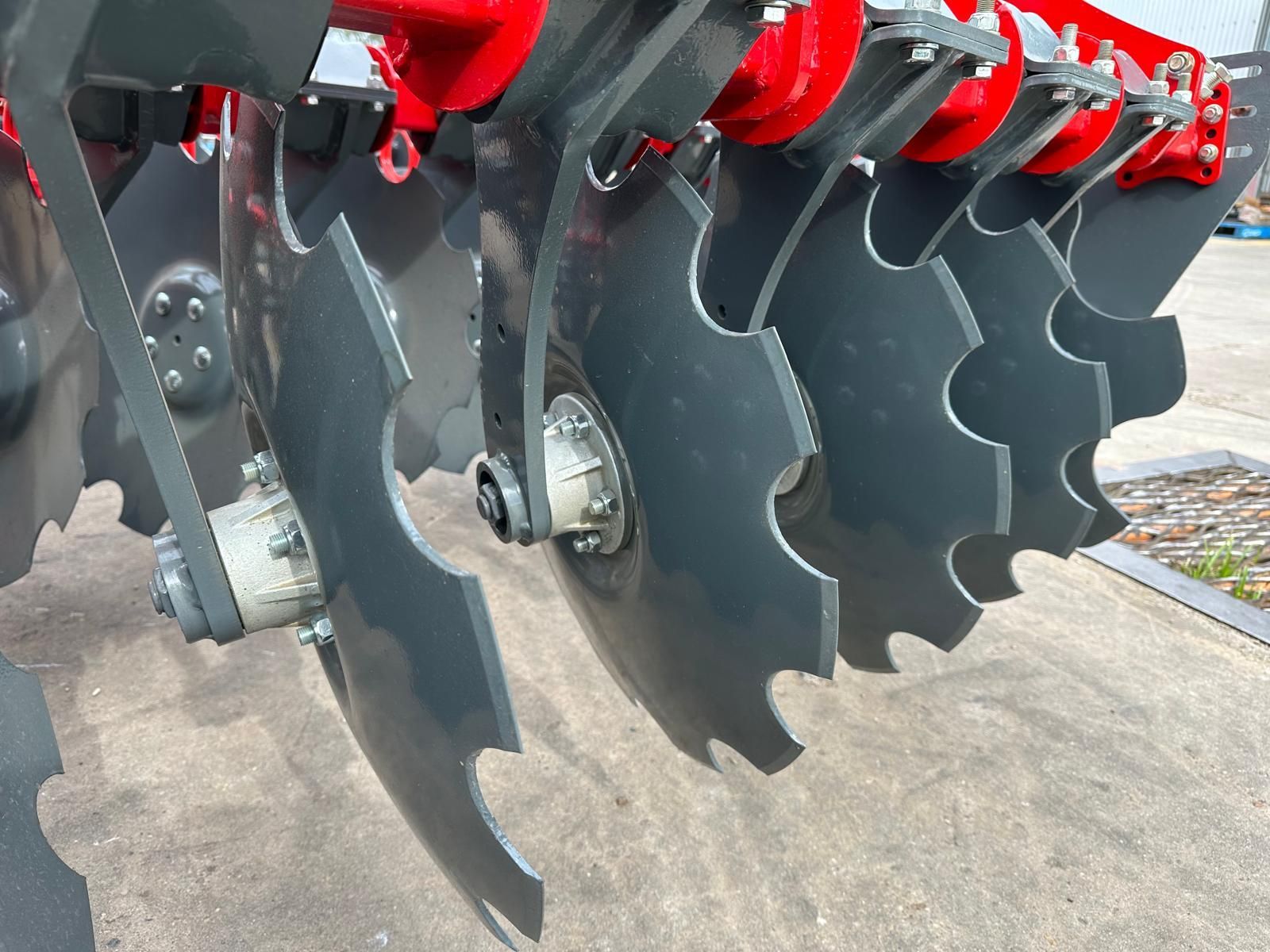

Dual-Action Disc Configuration

The Ares XL features a unique dual-action, double row of discs configuration, with a broad border front disc for lifting soil and a fine corrugated back disc for turning soil over. This design ensures effective cutting through crop residues, relieving soil compaction, and mixing topsoil to create a loose and even seedbed.

Extensive Coverage

Available in models ranging from 3 to 7 meters wide, the Ares XL provides extra-large coverage, enabling faster soil preparation over large areas in a single pass, making it ideal for diverse farming scales and improving overall productivity.

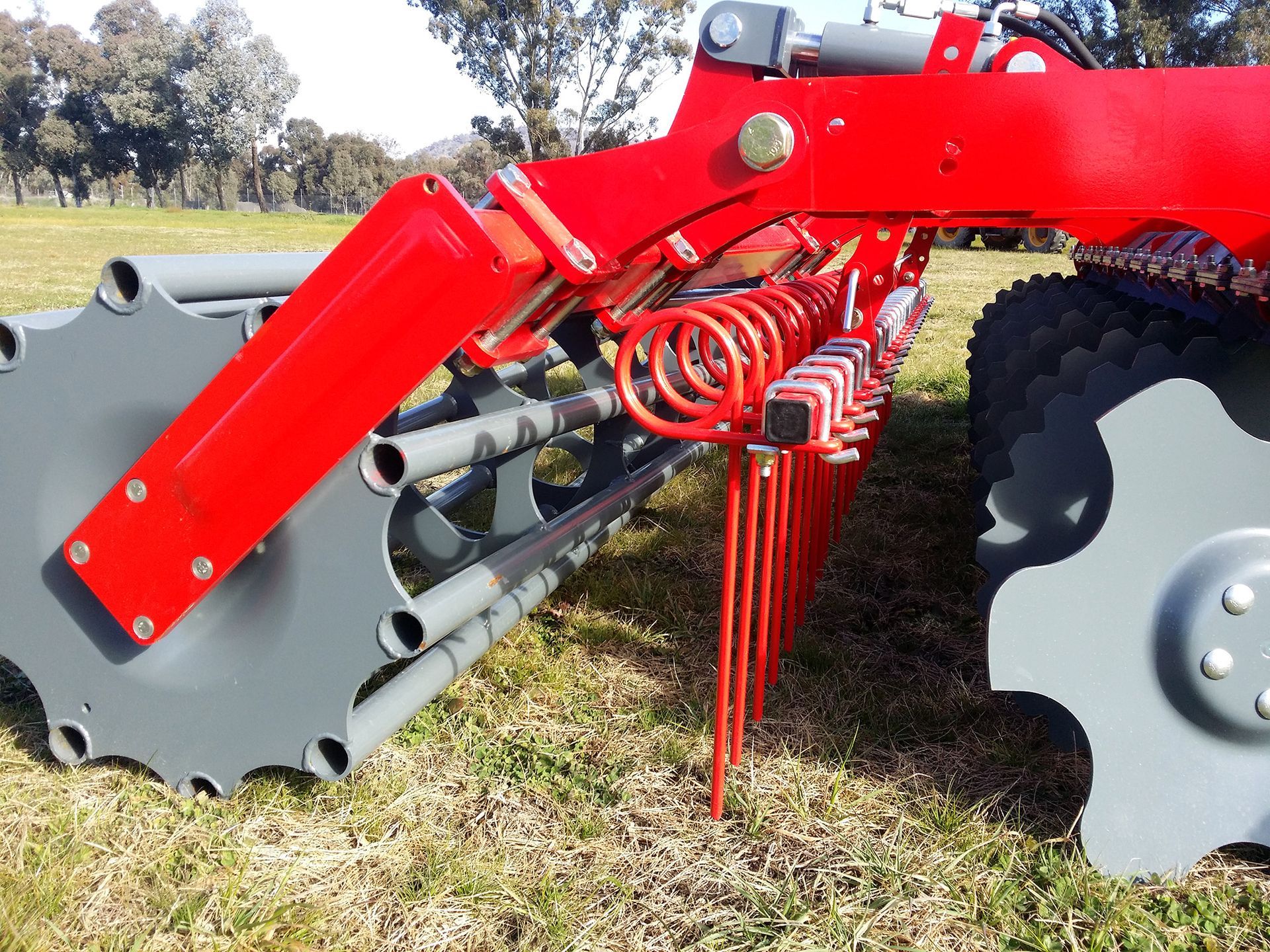

Leveling Fingers and Pipe Roller

Equipped with leveling fingers and a pipe roller, the Ares XL effectively combs through the soil, creating a flat seedbed and breaking up large soil clumps, ensuring optimal conditions for seed germination and growth.

Low Maintenance and Durable Design

Constructed with a heavy, extra-strength steel frame, the Ares XL ensures durability and reliability. Maintenance-free hubs with triple lip seals offer optimum performance, while two rows of 670 mm-diameter mounted wheels provide stability and ease during operation.

High-Performing and Modular

Designed to work efficiently at speeds of 10 to 12 kph and requiring tractors between 110 and 210 HP, the Ares XL is adaptable and can be combined with other machines for enhanced versatility. Units over 4 meters in width feature a folding chassis powered by hydraulics for ease of transport.

Safety and Comfort in Operation

With options for pneumatic, dual-line, or hydraulic braking systems and a semi-trailing axle compatible with variable hitch categories, the Ares XL is designed for safety and ease of use. Additionally, the combination of suspension axle and rubber shock absorbers protects the machinery from bumps and hard impacts, ensuring a smooth operation.

Advanced Hydraulic System for Depth Adjustment

The Ares XL uses a sophisticated hydraulic system to precisely adjust the working depth up to 15 cm, allowing customization according to varying soil conditions and requirements for different crops.

At FarmTech Machinery, we know you are the kind of farmer who wants to easily transform the unbroken ground into a rich and healthy paddock. To be that way, you must have a strong, capable Speed Disc that can easily penetrate through hard, compacted soil.

The problem is there’s a lot of choice in the market, which makes you feel concerned about making the right purchase. We believe every farmer needs a reliable and efficient speed disc to make the seedbed as easy as possible.

We understand the hard work and perseverance of every farmer. That’s why we keep introducing machinery that will lessen your burden and workload. With the Unia Ares XL speed disc, you get a high-performance, fuel-efficient, and ultra-durable disc cultivator that will ensure you’ll get an excellent combination of an even seedbed and loose soil granulation for your crops. Call us now so we demonstrate how the innovative Ares line of machines can help your everyday or seasonal farming. You can now stop worrying if the ground is properly broken for planting and start working with machinery designed to meet any farmers’ requirements.
