CZ-M – Chisel Plough – Minos Agri

The Key to loosening deep compaction in your paddock’s soil.

Deep Soil Cultivation

Heavy-Duty Construction

Seedbed Preperation

Specifications

Here are some technical details of all the available variants/models in this specific product.

Model/Tines CZ-5 CZ-7 CZ-9 CZ-11 CZ-13
Total Width 1570mm 2200mm 2700mm 3200mm 3700mm
Total Height 1300mm 1300mm 1300mm 1300mm 1300mm
Total Length 1800mm 1800mm 1800mm 1800mm 1800mm
Working Width 125cm 175cm 225cm 275cm 320cm
Required Power 60-70hp 75-80hp 85-90hp 90-100hp 110-140hp
Weight 400kg 550kg 630kg 770kg 870kg

CZ-M Chisel Plough – Minos Agri

Australian farmers often struggle with unhealthy growth due to compacted soil deep below the surface.

The CZ-M is a Chisel Plough designed to penetrate deep into your paddock’s hard soil and loosen the soil from below to deliver better aeration, moisture retention, and improved growth.

CZ-M Chisel Plough Overview

The CZ-M Chisel Plough is a reliable and powerful farm implement that helps farmers to break hardpans. This plough is equipped with adjustable depth control, allowing the farmer to set their desired depth for different conditions. Its sturdy construction ensures durability and consistent results every time it’s used. The CZ-M also has an innovative design that allows it to cut through hard soils with ease, making it ideal for ploughing in challenging soils. Relieving deep compaction has been proven to allow your crop to grow deeper, more robust root systems helping your plants to be more drought resistant.

Design and Standard Features

Adjustable Depth Control

The CZ-M Chisel Plough comes with adjustable depth control, enabling farmers to customize the depth according to varying soil conditions and requirements. This feature ensures precise and effective soil penetration for optimal aeration and moisture retention.

Durable Construction

 With its sturdy build, the CZ-M is designed for longevity and consistent performance. Its robust design allows it to withstand tough Australian soil conditions, making it a reliable tool for deep soil compaction relief.

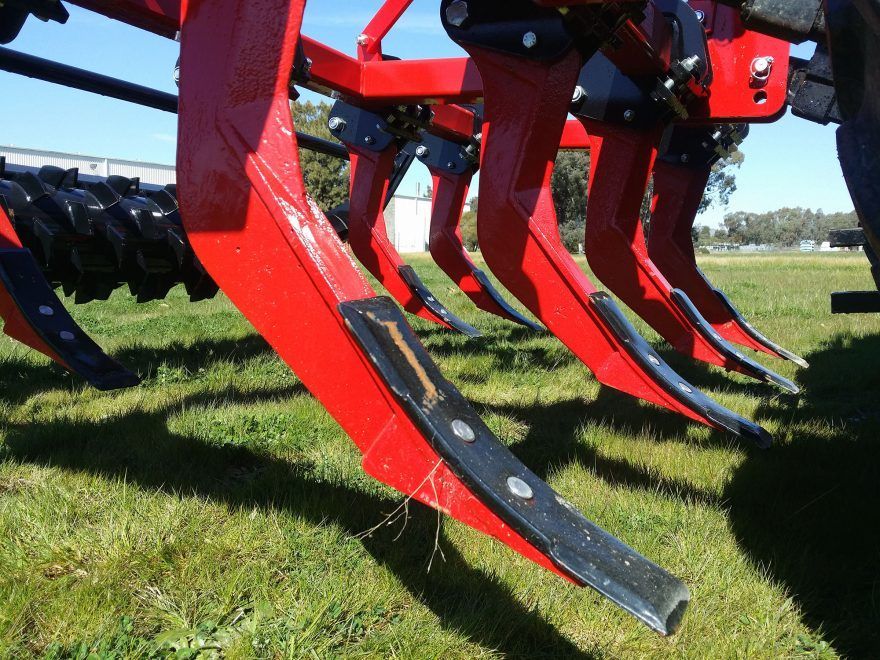

Parabolic Tines

 Equipped with parabolic tines at a 30° angle of penetration, the CZ-M provides superior ploughing efficiency. The curved shape and angle reduce soil resistance and compaction, promoting better drainage and soil fertility.

Crumble Roller for Depth Control

 The attached crumble roller allows for precise depth settings, helping to maintain consistent soil contact and reducing the risk of soil compaction. It also aids in preserving the soil structure by applying controlled pressure.

Shear Bolt Protection

 The inclusion of a shear bolt prevents damage to the plough and tractor by breaking under excessive force, protecting the machinery from large rocks or stumps and ensuring safer operations.

Specifications for Various Needs

With CAT 2 three-point linkage, working widths from 1.3 to 3.0 meters, and required horsepower ranging from 60 to 140 HP, the CZ-M Chisel Plough can accommodate a wide range of tractors and farm sizes, offering versatility to meet diverse agricultural needs.

Heavy-Duty Toolbar

Designed to absorb significant force during soil penetration, the heavy-duty toolbar supports multiple tines and maintains stability during ploughing, contributing to the chisel plough’s effectiveness and durability.

At FarmTech Machinery, we know you are the kind of farmer who wants a fine, productive paddock with no deep compaction issues. In order to be that way, you need a reliable farming implement that can penetrate deeply into the ground to address the root cause.

The problem is that most implements are designed to turn the soil over and incorporate leftover crops, which isn’t always the best-case scenario. We believe Australian farmers deserve a viable tool to work around these cases and focus solely on relieving deep compaction issues.

We understand these problems, so we are bringing you the CZ-M Chisel Plough for all your ploughing and processing needs. First, hook up the plough to your tractor. Then, let the machine do its magic around your field.

So get in contact with us now, so you can stop wasting precious time and energy on inefficient ploughing and start processing through your farmland with ease.
