Disc-O-Vigne

Break up soil compaction and suppress weed growth in between vineyard rows. Uncultivated soil and weeds hinder plant growth and can reduce crop yields if not properly controlled. The Disc-O-Vigne, with its smaller profile and Independent Disc Stubble-Breaker with Additional Blades easily solves this problem by slipping through narrow vineyard rows.

Working Width

1.0 M - 2.20 M

Roller Material

Steel Roller

Required HP

40 - 110 HP

Operation Type

P.T.O-Driven

Disc-O-Vigne – Speed Disc – Agrisem

Easily Break Compacted Soil and Integrate Stubble in Between Vineyard Rows

DISC-O-VIGNE Working Width / HP
1.0m / 40-80 hp
1.2m / 50-90 hp
1.5m / 55-95 hp
1.7m / 60-100 hp
2.2m / 70-110 hp

Seedbed Preparation

Reliable and Robust Design

Highly Versatile and Adaptable

Specifications

Here are some technical details of all the available variants/models in this specific product.

MODEL DISC-O-VIGNE V DISC-O-VIGNE X
Working width (m) 1 1.20 1.50 1.70 2.20 1 1.20 1.50 1.70 2.20
Transport width ( m) 1.20 1.40 1.70 1.90 2.40 1.20 1.40 1.70 1.90 2.40
Weight (kg) 750 840 940 1 020 1 200 640 720 830 910 1 090
Weight (≈ kg) with 3 front blades - 940 1 050 1 120 1 300 - 820 930 1 010 1 190
Number of discs Ø510 mm 10 12 14 16 20 6 8 10 12 16
Power req. min-max (hp) 40-80 50-90 55-95 60-100 70-110 40-80 50-90 55-95 60-100 70-110

Disc-O-Vigne Speed disc- Agrisem

Many Australian farmers struggle with compacted soil in vineyard rows. The Disc-O-Vigne is specifically designed to navigate narrow spaces, alleviating compaction and integrating stubble for enhanced vine growth and moisture retention.

Disc-O-Vigne Speed disc Overview

Eradicate compacted soil issues in your vineyard with the Disc-O-Vigne from Agrisem, specifically engineered to navigate the narrow rows typical of Australian vineyards. This heavy-duty vineyard speed disc is your solution to enhance root growth, integrate stubble effectively, and improve moisture retention for healthier vine growth.

Design and Standard Features

Compact Design for Narrow Spaces

Specifically engineered to navigate narrow vineyard rows, the Disc-O-Vigne comes in widths from 1.20 to 2.20 meters. This design ensures easy passage between vines, addressing the unique challenges faced by vineyard operators.

Power Requirements and Durability

Suitable for tractors ranging from 50 to 100 HP, depending on the model, each Disc-O-Vigne is constructed from thick, reinforced steel, providing enhanced strength and durability for prolonged use in challenging conditions.

Versatile Mounting Options

Equipped with a Category 1 or 2 coupling kit, the Disc-O-Vigne offers a secure and straightforward attachment process, making it a flexible addition to various types of tractors.

Independent Disc Stubble-Breaker

Featuring one to three front blade options and a reinforced frame, the Disc-O-Vigne effectively breaks up stubble and compacted soil, promoting better root growth and moisture retention.

Effective Soil Finishing

A standard Ø460 mm rear steel roller ensures a flat, even finish post-tillage, enhancing soil structure and readiness for subsequent vine growth or planting.

Additional Soil Loosening Features

Includes an extension kit with four additional discs to expand working width and improve inter-row tilling, paired with a patented V-sem roller for deeper vertical soil pressing and aeration.

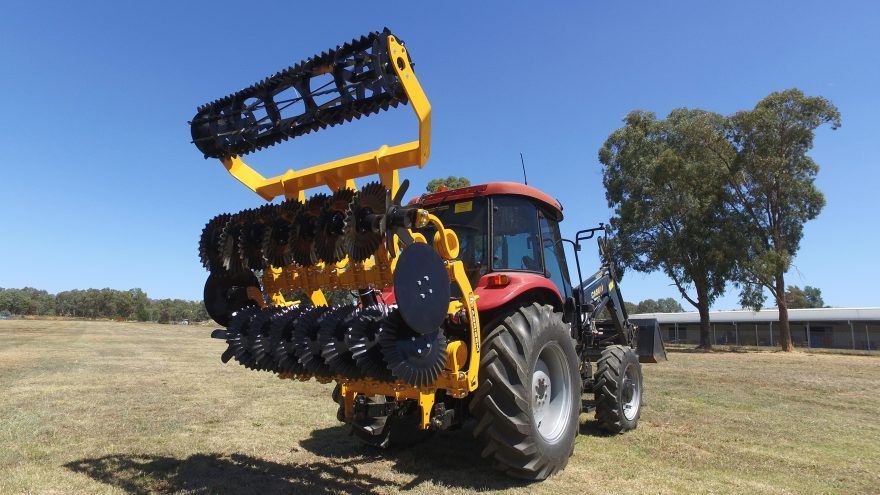

Hydraulic Folding for Transport

The hydraulic folding feature allows for compact lifting of the tilling section, making the unit easier to transport and maneuver between locations and through narrow vineyard rows.

At FarmTech Machinery, we know that you need to eliminate soil compaction and unwanted growth so your vineyard grows healthy and productive. In order to be that way, you need a speed disc that can pass in between narrow vineyard rows.

The problem is there are only a few speed discs that come at the right size and still get the job done satisfactorily, which makes you question whether that equipment is actually needed or not. We understand that you only want to grow a nice, productive vineyard.

That’s why we give you the Disc-O-Vigne – Agrisem as your tilling and mulching solution for your vineyards and trees for optimum soil health and moisture retention. Here’s how it works. First: install the equipment on your tractor. Second: lower the roller onsite and pass to the area needed to till. Third: after tilling the field, use the hydraulic folder to make it compact for easy transport.

So contact us today so you can stop worrying about tough, compacted soil and start using Disc-O-Vigne – Agrisem as the cost-effective way to maintain your fields and vineyards.
