FarmTech

Cultiplow

Creates a smooth and uniform seedbed. Inconsistent soil tilth and cloddy seedbeds can result in uneven crop emergence and growth, leading to yield losses. The Gold Cultiplow creates a smooth and uniform seedbed by levelling the soil surface and breaking up clods, facilitating optimal seed-to-soil contact, leading to more uniform crop emergence and higher yields.

Working Width

2.5 M - 8.0 M

Operation Type

Ground-Driven

Required HP

90 - 450 HP

Blade Length

25 - 45 cm

Gold – Cultiplow – Agrisem

From Solid Ground to Fertile Foundations, Revolutionizing Soil Loosening.

Gold Cultiplow Working Width / HP
2.5m / 90-180 hp
3.0m / 110-210 hp
3.5m / 150-230 hp
4.0m / 170-250 hp
4.5m / 200-280 hp
6.0m / 280-380 hp
8.0m / 380-450 hp

Seedbed Preparation

Reliable and Robust Design

Highly Versatile and Adaptable

Specifications

Here are some technical details of all the available variants/models in this specific product.

GOLD FIX VERSION RECTRACTABLE VERSION FOLDABLE VERSION
Working Width (m) 2.5 3 3.5 4 4 4.5 6 8
Weight (kg) -With Cage Roller 1 593 1 911 2 269 2 627 3 034 4 613 5 361 7 147
Power (hp) 90-180 110-210 150-230 170-250 170-250 200-280 280-380 380-450
Number of Blades 3 4 5 6 6 6 8 11

Gold Cultiplow – Agrisem

Many Australian farmers struggle with deep soil compaction that impedes root growth and water infiltration. The Cultiplow Gold, a solo soil loosener equipped with TCS 650 retracted point blades, addresses this by breaking up compacted layers without disturbing the soil surface, available in widths from 2.5m to 8m and working depths from 15 to 35 cm to meet diverse agricultural needs.

Gold Cultiplow Overview

Introducing the Cultiplow Gold, a versatile and robust soil loosener designed to meet the diverse requirements of modern farming. Available in both rigid and foldable mounted models, the Cultiplow Gold offers optimal soil penetration and aeration, ensuring your land is perfectly prepared for planting.

Design and Standard Features

Versatile Configuration Options

 The Cultiplow Gold comes in both rigid and foldable mounted versions, offering flexibility to suit different farm sizes and storage facilities. This versatility ensures that farmers can choose the model that best fits their operational needs and space constraints.

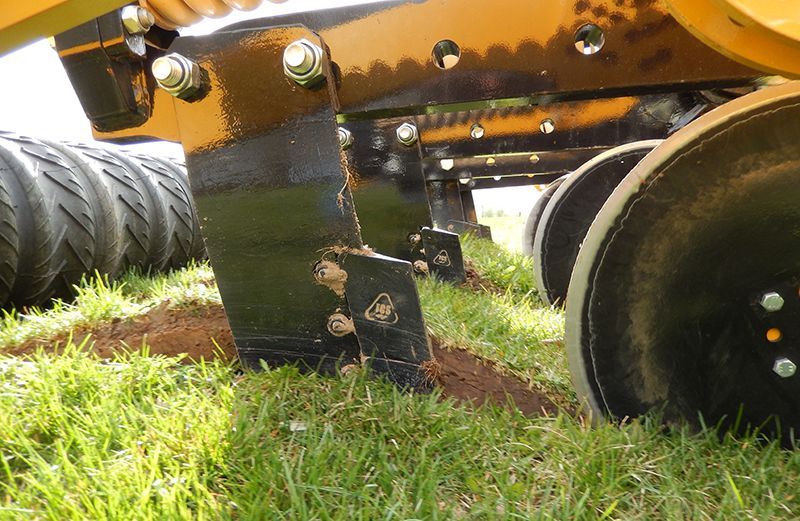

Advanced TCS 650 Retracted Point Blades

 Equipped with TCS 650 retracted point blades, the Cultiplow Gold efficiently breaks up compacted soil layers, enhancing soil aeration and promoting healthier root growth without significant disturbance to the topsoil structure.

Shear Bolt and Non-Stop Spring Security

 The soil loosener comes with the option of shear bolt security for cost-effectiveness and simplicity or non-stop spring security for continuous operation without downtime, providing safety and protection against unforeseen obstacles.

Wide Working Width Range

 Available in widths from 2.5m to 8m, the Cultiplow Gold is suitable for a variety of field sizes, from smaller plots to large acreages, increasing its applicability across different farming operations.

Customizable Blade Configuration

 Farmers can choose the number of blades according to their specific requirements, allowing for a tailored approach to soil loosening that can accommodate different soil types and conditions.

Efficient Soil Loosening Capability

 Designed to penetrate and loosen compacted soil layers deeply, the Cultiplow Gold improves water infiltration, nutrient absorption, and root penetration, leading to enhanced crop growth and increased yields.

Adjustable Working Depth

With a working depth range of 15 to 35 cm, the Cultiplow Gold allows farmers to set the depth according to the crop’s needs and soil conditions, ensuring optimal soil structure and preparation for seeding or planting.

At FarmTech Machinery, we recognize that efficient soil loosening is crucial for enhancing root growth and overall crop productivity. Proper soil aeration can significantly impact the quality of your yield and ensure the health of your crops.

The problem many farmers face is finding an adaptable tool that effectively breaks up compact soil without requiring multiple passes. We believe you deserve a soil loosener that can be tailored to your specific land needs and working conditions.

Contact FarmTech Machinery today to discover how the Cultiplow Gold can revolutionize your soil management strategy and help you achieve higher quality crops and yields.
