IOD – Multi-Spreader – SpreadX

Versatile and Vigorous The Ultimate Solution for Diverse Fertilizing Needs

Accurate Dispersion

Heavy-Duty Construction

Durable and Rugged

Specifications

Here are some technical details of all the available variants/models in this specific product.

MODEL IOD-600H IOD-750H IOD-900H
Capacity (L) 780 L 970 L 1160 L
Spreading Width (m) 8m-12m 8m-12m 8m-12m
No. Discs 1 1 1
Outlet Shutter Control Mechanic Mechanic Mechanic
Spreading Pattern Full width spreading (180°) Full width spreading (180°) Full width spreading (180°)
Weight (kg) 280kg 320kg 360kg
Length (mm) 1500mm 1500mm 1500mm
Height (mm) 1330mm 1330mm 1330mm
Width (mm) 1500mm 1800mm 2100mm
Hopper Material Stainless steel 430 (Option: Stainless 201 or 304) Stainless steel 430 (Option: Stainless 201 or 304) Stainless steel 430 (Option: Stainless 201 or 304)
Power Hydraulic Hydraulic Hydraulic

IOD Multi Spreader- SpreadX

Many Australian farmers face limitations with spreaders that can’t handle a wide range of fertilizers, forcing multiple purchases. The IOD Multi-Spreader series solves this by handling various materials at once, from dry organic compost and manure to lime, gypsum, granular fertilizers, sand, and salt.

IOD Multi Spreader Overview

Australian farmers face the challenge of spreading a wide range of fertilisers efficiently. The IOD Multi-Spreader series, including the SpreadX, offers a solution, providing versatility and efficiency in spreading different materials from dry organic compost and manure to lime, gypsum, and granular fertilisers.

Design and Standard Features

Versatile Spreading Capabilities

The IOD Multi-Spreader series, including the SpreadX model, is capable of handling a variety of materials ranging from dry organic compost and manure to lime, gypsum, granular fertilisers, sand, and salt. This versatility saves farmers from needing to purchase multiple machines for different fertiliser types.

Robust Construction

Featuring a heavy-duty steel frame, the SpreadX is built for durability and longevity. It’s designed to withstand the rigors of farm use while providing consistent performance. The CAT 2 three-point linkage ensures secure attachment to a tractor.

Stainless Steel Components

Key parts such as the hopper, prevention plate, spinner disc, and vanes are made from stainless steel, making them resistant to wear, tear, and corrosion. This ensures a long operational life and reduced maintenance costs.

Large Capacity Hoppers

With hopper capacities ranging between 600L to 900L, the IOD Multi-Spreader can handle large volumes of material, reducing the number of refills required and increasing efficiency.

Adjustable Spreading Options

Equipped with a single spinner and adjustable flow rate, the SpreadX allows for precise spreading control, making it suitable for a wide range of spreading tasks. The adjustable spread width of up to 16 meters ensures even coverage across large areas.

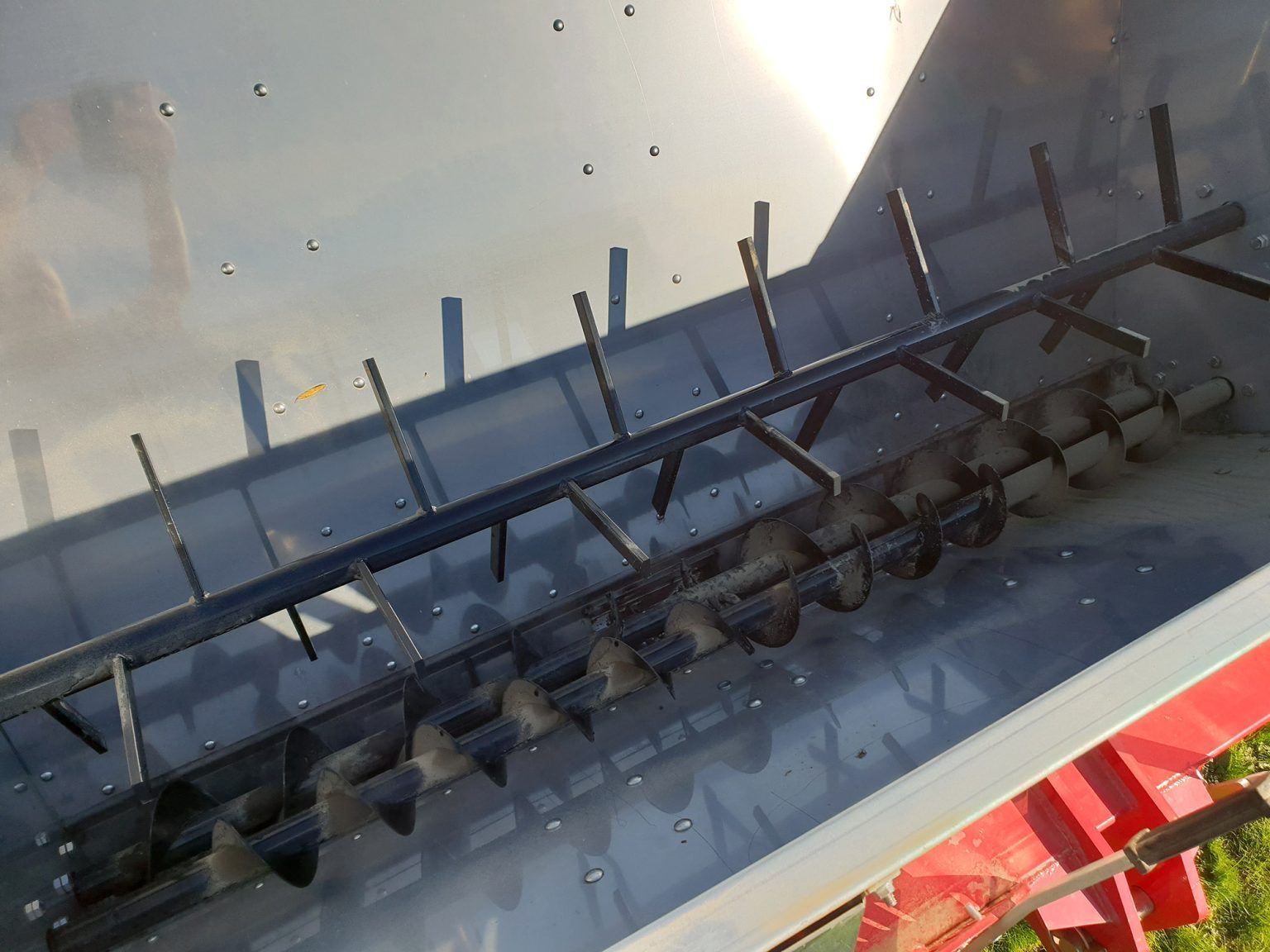

Hydraulic Powered Double Auger and Agitator

This feature ensures even flow of materials through the shutters and onto the field, preventing material bridging and ensuring uniform spreading.

Two-Mode Shutter System

Allows for efficient spreading of both coarse materials like compost and finer granular fertilisers. This flexibility enables farmers to use the same machine for different spreading needs.

At FarmTech Machinery, we know you are the kind of farmer who wants to nourish your farm with minimum time and effort. In order to be that way, you need a spreader machine that is high quality and reliable to help you do the job swiftly.

The problem is that many spreading equipment is single-purpose, making you switch from one machine to another depending on the material that requires spreading. We believe that using a self-loading multi-spreader machine effectively eliminates the loading problem and saves you time and effort.

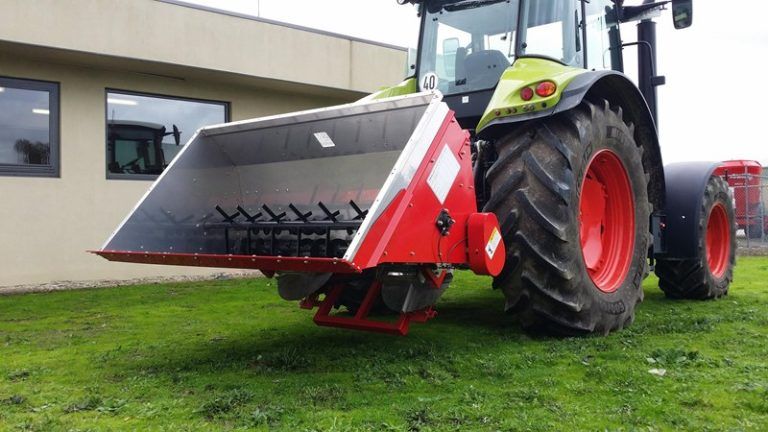

We understand that efficiency leads to profitability. That’s why we introduce you to the FarmTech IOD and IODD multi-spreader series, a set of self-loading multi-spreaders designed to spread various dry materials in one. Here’s how it works; simply put down the rear bucket hatch, back up into a pile of your intended materials, and then let the hydraulics system do the loading work for you. Lastly, you can close the hatch and start your multi-spreader machine for distribution when the spreader is fully loaded.

Contact our team today so you can stop wasting so much of your time and effort and start getting more tasks done in one go.

This website uses cookies and asks your personal data to enhance your browsing experience.

Manufactured in Australia
