Tanco Q200

Streamlines wrapping operations with advanced automation. Manual wrapping can be labour-intensive and prone to errors, affecting overall farm productivity. The Tanco Q200 Automatic Bale Wrapper offers advanced automation features, optimizing wrapping efficiency and ensuring consistent wrapping quality for improved farm performance.

Cycle Time

Up to 45 Bales/Hour

Bale Compatibility

Plus Size Square Bales

Operation Type

Hydraulically-Driven

Wrap Configuration

Single Wrap

TANCO Q200 Bale Wrapper

Effortlessly and precisely wrap large bales while preserving the most nutrient contents

Reliabiliy and Durability Guaranteed

Silage Season Essentials

Time-Saver

Specifications

Here are some technical details of all the available variants/models in this specific product.

MODEL Q200 V
Weight and Dimensions
Transport Length (m) 2.87 / (9'4")
Transport Width (m) 1.54 / (5'0")
Height in Transport (m) 2.87 / (9'4")
Weight (kg) 1,370 / (3,020 lbs)
Bale Dimensions
Width x (Min. - Max. Diameter) (m) 1.5 x (0.80 - 1.70)
US Round Bale Dimensions (ft) up to 5" x 5'5"
Max. Bale Weight (kg) 1,200 / (2,645 lbs)
MAX. SQUARE BALE SIZE
Width x Height x Length (m) 1.2 x 1.4 x 1.9
US Square Bale Dimensions (ft) 4" x 4" x 6"
MIN. SQUARE BALE SIZE
Width x Height (m) 0.47 x 0.80
US Square Bale Dimensions (ft) 1'5" x 2'6"
Hydraulics
Min. Oil Consumption (l/min) (US gal/min) 30 / 8
Max. Oil Consumption (l/min) (US gal/min) 60 / 16
Min. Oil Pressure (bar) (PSI) 180 / 2,600
Free Flow Return Required Yes
Load Sensing Option Yes

TANCO Q200 Bale Wrapper

Australian farmers often struggle in wrapping large bales, resulting in time-consuming processes, excessive labour requirements, and potential damage to the bales. The Tanco Q200 aims to solve these issues by introducing cutting-edge features and innovations, simplifying bale wrapping operations while prioritizing bale protection and efficient handling.

TANCO Q200 Bale Wrapper Overview

Experience the pinnacle of bale wrapping efficiency with the Tanco Q200. This advanced 3-point linkage wrapper offers unmatched versatility and performance, revolutionizing bale wrapping for modern agricultural operations. With features like auto-levelling, proportional hydraulics, and telescopic Cut & Start, the Q200 ensures precise wrapping while streamlining operations for optimal efficiency and bale protection.

Design and Standard Features

Design and Standard Features

Twin Film Dispensers

The Q200 features twin film dispensers, strategically positioned to apply wrap from opposing sides of the bale, ensuring thorough coverage and enhanced adhesion for optimal bale protection.

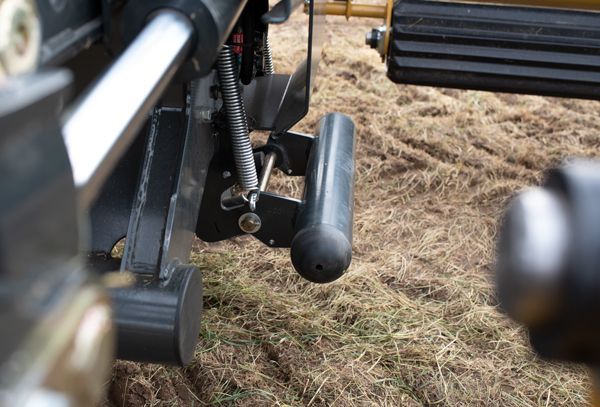

Auto-Load Feature

With the innovative auto-load feature, the Q200 initiates the wrapping cycle automatically upon bale contact, streamlining the process and reducing the need for manual intervention, thus maximizing efficiency during wrapping operations.

Telescopic Cut & Start

Tanco’s patented telescopic Cut & Start system extends and retracts to gather the film before cutting, minimizing film waste and ensuring precise wrapping, enhancing reliability and reducing operational costs.

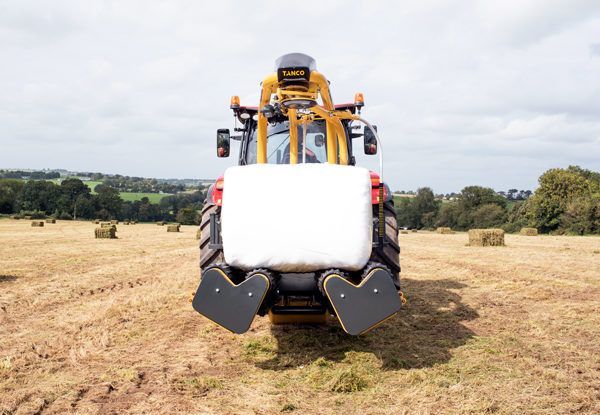

Automatic Bale Levelling

The Q200 boasts an automatic bale levelling feature, ensuring efficient off-loading by automatically adjusting the bale position, eliminating the need for manual adjustments and saving valuable time during wrapping operations.

Variable Speed Hydraulics

Equipped with variable speed hydraulics, the Q200 allows for adjustable wrap arm speed, providing smoother operation, reduced vibration, and longer machine lifespan, ensuring consistent and reliable wrapping performance.

RDS Expert Plus Controller

Featuring a larger screen, the RDS Expert Plus Controller offers faster data input and read-out, enhancing user experience and control, and enabling operators to optimize wrapping parameters with ease and precision.

Tanco Dual Stretch Aluminium Dispenser

With built-in stretch options, including 55% and 70%, the Tanco Dual Stretch Aluminium Dispenser provides precise plastic film coverage, ensuring optimal bale protection and longevity, thus maximizing the value of wrapped bales.

At FarmTech Machinery we know you are the kind of farmers who want to be efficient and productive stewards of your land. In order to be that way, you need a bale wrapper that simplifies and streamlines your wrapping process, ensuring timely and hassle-free bale protection.

The problem is traditional bale wrapping methods are time-consuming and labour-intensive, leading to inefficiencies and potential damage to bales, which makes you feel frustrated and constrained by outdated practices. We believe no farmer should have to endure such inefficiencies and risks when it comes to bale wrapping. We understand the challenges you face in managing your baling operations.

That’s why we offer the TANCO Q200, a revolutionary bale wrapper designed to maximize efficiency and protect your bales effectively. Here’s how it works: First, the auto-load feature initiates wrapping automatically upon bale contact, eliminating the need for manual intervention. Second, the twin film dispensers ensure thorough coverage and adhesion, enhancing bale protection. Third, the variable speed hydraulics provide smooth and consistent wrapping, reducing vibration and prolonging the machine’s lifespan.

So invest in the TANCO Q200 today to streamline your bale wrapping process and avoid potential damage to your valuable bales. Don’t let inefficiencies and risks compromise your operations any longer. Make the smart choice now and experience the difference with the TANCO Q200.
