FarmTech

Double Axle Tip Traile

Ensures stability and safety during high-speed transport. Maneuvering heavy loads at high speeds without proper stability measures can pose safety risks for operators and equipment. The TrailMax Tandem Axle Tip Trailer provides enhanced stability and weight distribution, ensuring safe and secure transport even at high speeds, improving farm safety standards and reducing the risk of accidents.

Payload Capacity

12 tons

Max Speed

40 kph

Axle Type

Tandem Axle

HP Requirement

90 HP

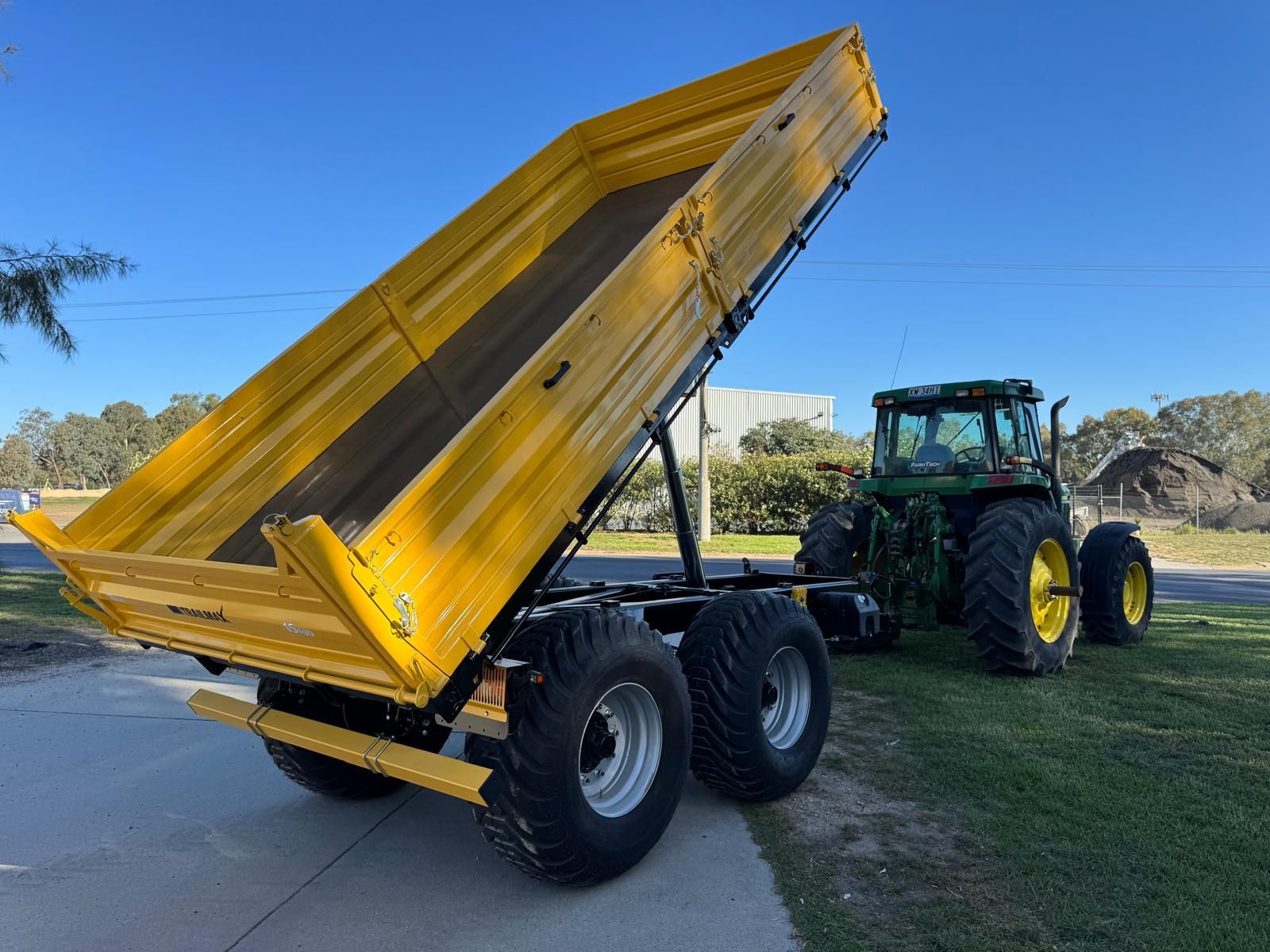

Tandem Axle – Tip Trailer – TrailMAX

Transport goods and materials across the farm without backache or loss of time

Hummel Tandem Axle Empty Weight / Hp
2250kg / 70hp
2500kg / 80hp
2750kg / 90hp
3500kg / 100 hp

Effortless Loading and Unloading

Reliable and Robust Design

Highly Versatile and Adaptable

Specifications

Here are some technical details of all the available variants/models in this specific product.

Specification RM4480 (8 Ton) RM44100 (10 Ton) RM44120 (12 Ton) RM44150 (15 Ton)
Empty Weight 2250 kg 2500 kg 2750 kg 3500 kg
Loading Capacity 8000 kg 1000 kg 1200 kg 15000 kg
Load Volume 11 m3 13 m3 16.8 m3 16.3 m3
Loading Area 8.5 m2 9.3 m2 9.3 m2 10.9 m2
Length & Width inside of Loading Bag 4220/2020 mm 4420 / 2120 mm 2120 / 4420 mm 4920 / 2220 mm
Length & Width outside of Loading Bag 4300 / 2100 mm 2200 / 4500 mm 2200 / 4500 mm 5000 / 2300 mm
Total Length • Width • Height 5550/2200/2350 mm 5810 / 2116 / 2484 mm 5850/2810/2475 mm 6300/2400/2650 mm
Lateral Height 500 x 400 x 400 mm 600 x 400 x 400 mm 600 x 400 x 400 mm 700 x 400 x 400 mm
Floor • Wall Thickness 3/2 3/2 3 4/2
Height From Ground 1050 mm 1075 mm 1075 mm 1150 mm
Wheel Track Length 1700 mm 1700 mm 1700 mm 1700 mm
Suspension Spring leaf Spring leaf Spring leaf Spring leaf
Tires 12.5 / 80 - 15.3 400 / 60 - 15.5 400 / 60 - 15.5 500 / 50 - 17
Maximum Speed 40 km 40 km 25 km 40 km
Roll-over System Backside REAR REAR REAR REAR
Number of Telescopic Cylinders And Number of Cylinder Sections 1/4 1/4 1/4 1/4
Oil Need 18 L 18 L 18 L 24 L
Operating Pressure 160 PS 160 PS 160 PS 160 PS
Minimum Tractor Power Requirement 70 hp / 52 kw 80 hp / 59 kw 90 hp / 67 kw 100 hp / 74 kw
Optional Brake System Hydraulic Hydraulic Hydraulic Hydraulic

Tandem Axle Tip Trailer – TrailMAX

Many Australian Farmers face challenges in efficiently transporting goods and materials on their farms. The Hummel Tandem Axle Tip Trailer provides a robust, cost-effective solution for quick, safe, and efficient transportation, saving both time and operational costs.

Tandem Axle Tip Trailer Overview

Transporting goods and materials efficiently across Australian farms is critical for maintaining productivity and reducing operational costs. The Hummel Tandem Axle Tip Trailer, with its sturdy construction and versatile design, provides an optimal solution for farmers and contractors who demand reliability and cost-effectiveness in their hauling operations.

Design and Standard Features

Durability and Rigidity

The trailer is built with high-grade materials suitable for Australian weather conditions, including a 4mm ST52 construction-grade steel floor designed for longevity and toughness against heavy loads and harsh usage.

Large Loading Capacity

Offers a range of loading capacities including 8, 10, 12, and 15 tons, catering to various transportation needs from general farming and harvesting to light construction.

Advanced Design Features

Equipped with a heavy-duty steel box section chassis and drawbar, and a choice between a mechanical or hydraulic jack, enabling the trailer to lift heavy loads safely and efficiently.

Mobility and Stability

Comes with a 50mm bolt-on swivel heavy-duty tow eye, flotation tires for better navigation on various terrains, and heavy-duty tandem parabolic suspension axles for superior stability both on and off-road.

Versatility and Ease of Use

Features 600mm tall sides made from 3mm stamped steel that are foldable or removable for easy loading and unloading, along with a single hydraulic telescopic lift cylinder for safe lifting.

Cost-Efficiency and Time Saving

Designed to reduce operational costs and save time with its low-maintenance design and long-life components, making it an excellent investment for maximizing profits and efficiency.

Safety Features

Equipped with hydraulic brakes on both axles to ensure secure stopping and slowing down during transport, enhancing safety and control.

At FarmTech Machinery, we know you are the kind of farmer who wants to save time and money when transporting your goods and materials. To be that way, you need to have reliable and efficient machinery that allows you to cut operational costs.

The problem is that without the Tip Trailer, you spend extra money transporting goods and materials, which takes time and effort and minimizes your output.



We believe Australian Farmers deserve to reduce their costs by using the most reliable and efficient machinery to help transport goods and materials.  The Hummel Tandem Axle Tipping Trailer is a good investment if you are ready to Maximize your profits by saving on the operational cost when transporting goods and materials.

So contact us to make an investment that will help you to save money and time!
