FarmTech

TSR – Rotary Hoes – Minos

Prepare loose, weed & stubble free seedbeds.

Seedbed Preperation

Heavy-Duty Construction

Highly Versatile and Adaptable

Specifications

Here are some technical details of all the available variants/models in this specific product.

MODEL T-SR 1400 T-SR 1600 T-SR 1850 T-SR 2100 T-SR 2400 T-SR 2500
Working Width (mm) 1260 1514 1768 2022 2240 2495
Working Depth Max (mm) 220 220 220 220 220 220
Overall Width (mm) 1516 1770 2024 2278 2570 2825
Overall Length (mm) 850 850 850 850 850 900
Overall Height (mm) 1100 1100 1100 1100 1100 1230
Number of Flanges 6 (5 opt.) 7 (6 opt.) 8 (7 opt.) 9 (8 opt.) 10 (9 opt.) 11 (10 opt.)
Number of Horizontal Blades 30 36 42 48 54 60
Number of Vertical Blades (opt) 36 44 52 60 68 76
Machine Weight (kg) 390 420 455 490 760 850
P.T.O Shaft Rotations (max) (min) 540 540 540 540 540 540
Required Tractor Power (HP) 30-35 35-40 40-45 45-50 55-65 70-75

TSR Rotary Hoes- Minos

Many Australian Farmers struggle with preparing a loose, stubble, and weed-free seedbed for optimal crop growth. The TSR – Rotary Hoes by Minos, available from FarmTech Machinery, provides a high-accuracy seedbed finish, breaking up soil compaction and mixing soils to eliminate weeds and incorporate crop residues, resulting in a flat and even seedbed ready for planting.

TSR Rotary Hoes Overview

Australian farmers facing the challenge of preparing a loose, stubble-free, and weed-free seedbed will find an effective solution in the TSR – Rotary Hoes by Minos. Engineered to deliver a high-accuracy seedbed finish, these rotary hoes embody precision and efficiency, catering to the specific needs of the agricultural sector.

Design and Standard Features

High-Efficiency Blades

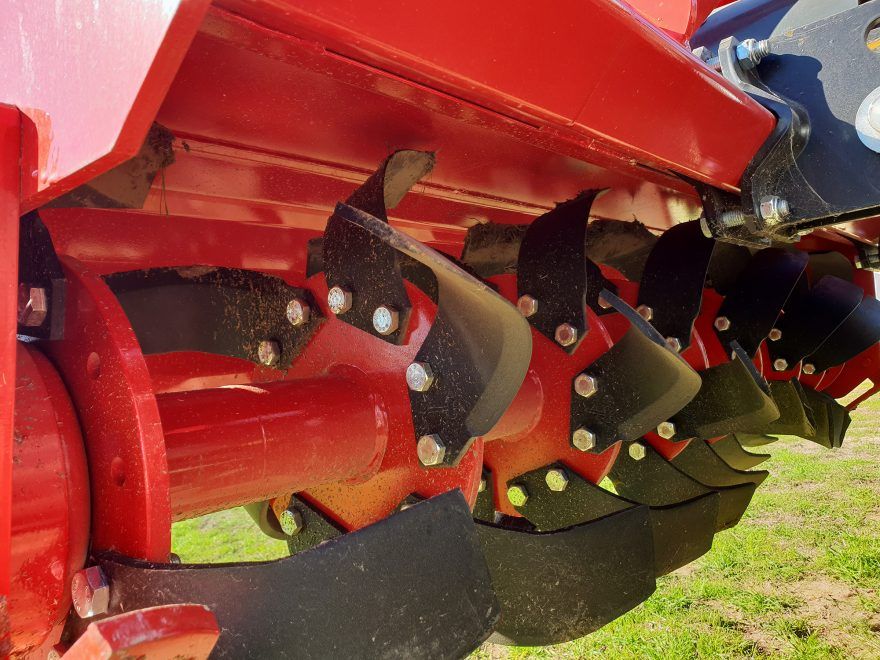

The TSR – Rotary Hoes feature six horizontal blades per flange, designed for maximum tilling efficiency. These robust blades ensure smooth operation in various soil conditions, enabling thorough soil mixing and stubble and weed elimination.

Adjustable Spring-Loaded Rear Gate

This innovative feature allows for precise adjustment of the tilling depth according to different soil types and conditions, ensuring the optimum soil preparation for seed planting and contributing to a uniform seedbed.

Powerful Gearbox

The machine is equipped with a Tractor PTO Powered 70HP Gearbox, designed for tractors up to 70 horsepower. This gearbox ensures reliable and powerful performance under different agricultural settings.

Depth of Operation

Capable of working up to a depth of 190mm, ensuring deep soil turning and aeration for preparing an optimal seedbed.

Versatility and Power Requirement

Suitable for tractors ranging from 35HP to 80HP and available in working widths from 1.3m to 2.5m, making it adaptable to various farm sizes and crop requirements.

Gear Drive System

The rotary hoes come with a gear drive system, providing consistent and reliable power transfer for enhanced tilling performance.

Robust Construction

Features heavy-duty construction and CAT 2 three-point linkage, ensuring durability and stability during operation.

At FarmTech Machinery, we know you are the kind of farmer who wants to boost your crop’s growth. In order to be that way, you need a nimble and flexible tilling machine that can break up surface compaction and eliminate weeds which slows down your crop’s growth.

The problem is that most farming implements are bulky and cumbersome, which doesn’t go well with delicate spots around your farmland. We believe Australian farmers should be able to relieve their fields of tight, compacted soil without sacrificing speed and performance.

We understand that Australian farmers want to effectively create the perfect seed bedding that deals with unearthing roots and breaking up compact soil. That’s why we offer our TSR – Rotary Hoes by Minos as a reliable way of efficient seed bedding. Here’s how it works: Hook up a TSR – Rotary Hoes to a 45HP – 65HP tractor. Then, run the vehicle steadily and turn your compacted paddock into perfectly tilled seedbeds.

So contact us so you can stop wasting precious time and energy and start creating the perfect seed beds for your crops!
